VERSA
MARK
General Purpose Wax Thermal Transfer Ribbons
-
Extremely
versatile wax ribbon
-
Unsurpassed
backcoat performance extends printhead life
-
Outstanding
print quality for normal and rotated bar codes and small
characters
-
Excellent
substrate latitude  prints well on a wide variety of
tags and labels
-
Prints
well at high print speeds
-
Applications:
- General
purpose labeling
- Shipping,
warehousing, and receiving labeling
- Shelf
and bin labeling
- Shipping
and address labels
- Retail
tag and label applications
- Textile
and Apparel product labeling
- Compliance
labeling
-
Direct printing on flexible packaging film
-
Recommended
Media:
- Uncoated
paper tag and label stock
-
Coated tag and label stock
-
Low end film labels (polyethlene and polypropylene)
-
Flexible packaging films
|
|
| Technical
Specifications |
|
- Film
Thickness: 4.5 Microns
- Total
Ribbon Thickness: 7.5 Microns
- Transmission
Density: 1.6 MacBeth Scale
- Ink
Melting Point: 75° C or 167° F
- Recommended
Maximum Print Speed: 12 IPS
|
|
|

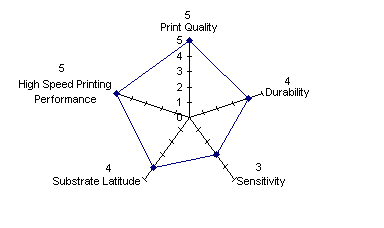

Star
Diagram
This diagram is representative of Versa Mark
used in general purpose applications when printing on paper
tag and label stocks. Performance ratings are based on a comparison
of ribbons within the general purpose wax category. Scale
1 to 5, 5 being the best.
|
|
 |
|
| Storage
Conditions |
|
|
To
ensure optimal performance, please adhere to the following
environmental conditions for use, shipping and storage.
- For
optimal print results, thermal transfer printing should
occur in the temperature range of 5°
C (41°
F) to 35°
C (95°
F) at 45% to 85% relative humidity.
- Recommended
shipping conditions for up to one month duration are
-5°
C (23°
F) to 45°
C (113°
F) at 20% to 85% relative humidity.
- To
ensure the ribbon ¡s performance, our suggested storage
conditions for up to one year duration are -5°
C (23°
F) to 40°
C (104°
F) at 20% to 85% relative humidity.
Please
Note: Exposing Thermal
Transfer Ribbons to direct sunlight or moisture will cause
damage to the ribbons. |
American
Printing Converters' goal is to achieve total customer satisfaction,
and we offer a 100% guarantee on all
our bar code thermal transfer ribbon products. |
